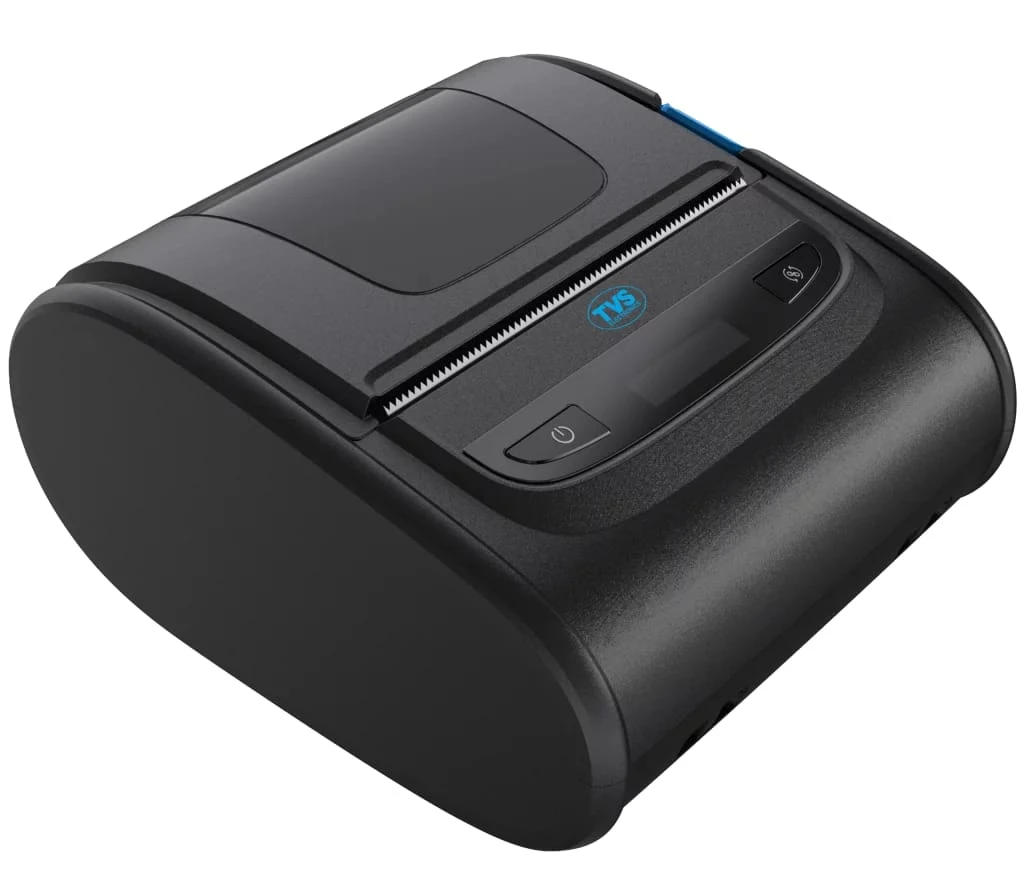

TVS MOBILE PRINTERS-MLP 3120

SPECIFICATIONS:

Print MethodThermal Line Printing

Resolution203 DPI

Max Print Speed120 mm/s

Max Print Width72 mm

Media Width30 – 80 mm

Minimum Label Height15 mm

Paper Thickness0.053 mm – 0.072 mm

Roll DiameterUp to 50 mm

Case MaterialPC+ABS with TPU rubber

Product Dimensions118 × 105 × 62 mm (D × W × H)

Product Weight450g

Interface OptionsUSB 2.0, Bluetooth 4.2/5.0, WiFi (2.4G/5G), NFC

Command CompatibilityTSPL, CPCL, ESC/POS, ZPL, JPL

ProcessorCortex-M7

Battery2500mAh / 7.4V Lithium Battery

Charging Time3–3.5 hours (Computer USB: 4 hours)

Print Capacity/Charge1300–1400 sheets (200mm height per sheet)

Standby TimeUp to 15 days

TPH Life50 km

Drop Protection1.5 meters

IP RatingIP54

Memory16MB Flash, 8MB RAM

SensorsGap, Black Mark, Paper Out, Cover Open, Overheat Alarm

Barcode Support1D: UPC, EAN, Code128, Code39, Codabar, ITF, etc.
2D: QR Code, PDF417, Data Matrix

Rotation Support0°, 90°, 180°, 270°

LanguagesEnglish, Simplified Chinese (GB18030), Traditional Chinese (BIG5)

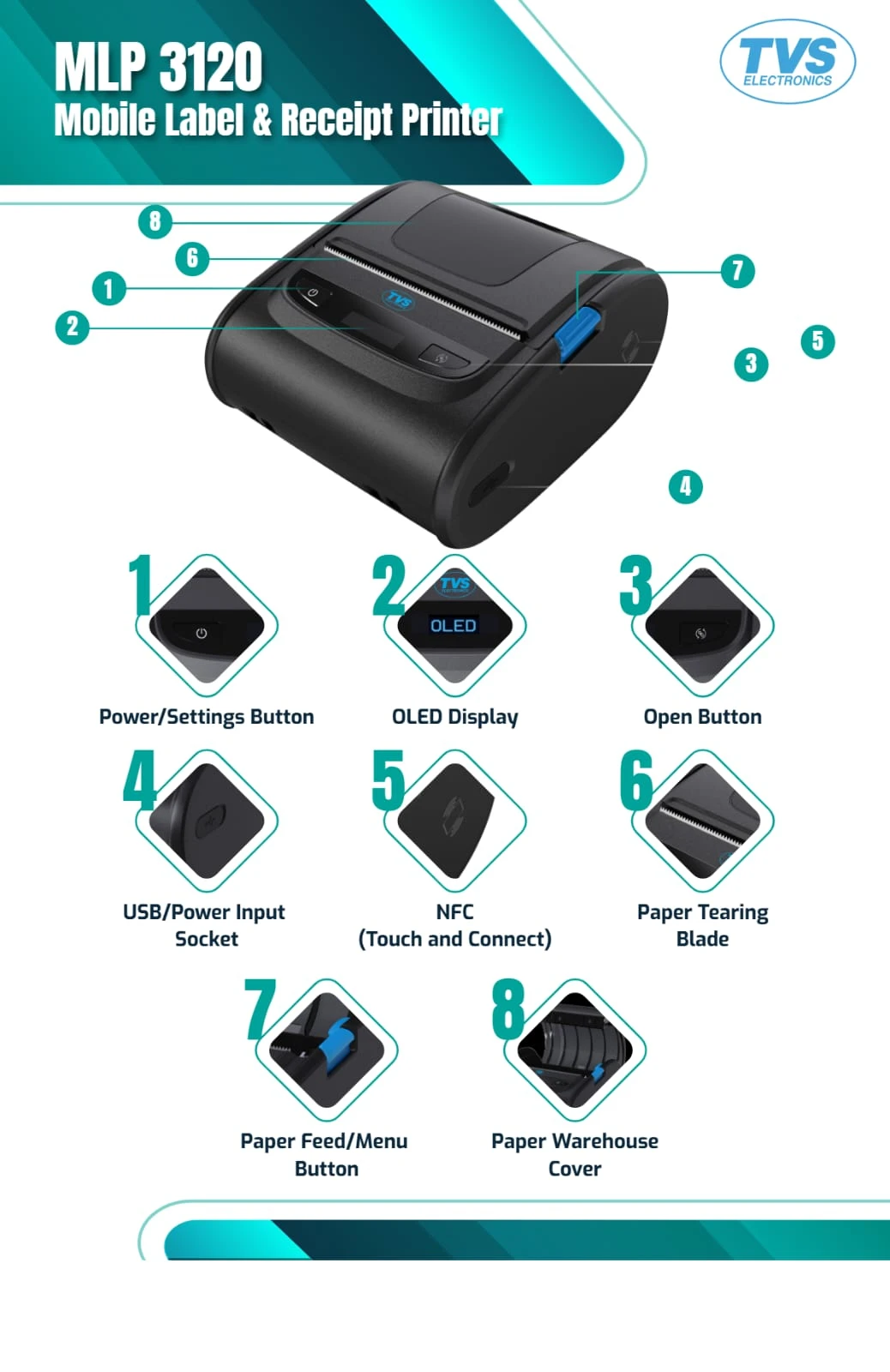

ControlsPower Button, Paper Feed/Menu, Lid Open, OLED Display

FEATURES:
