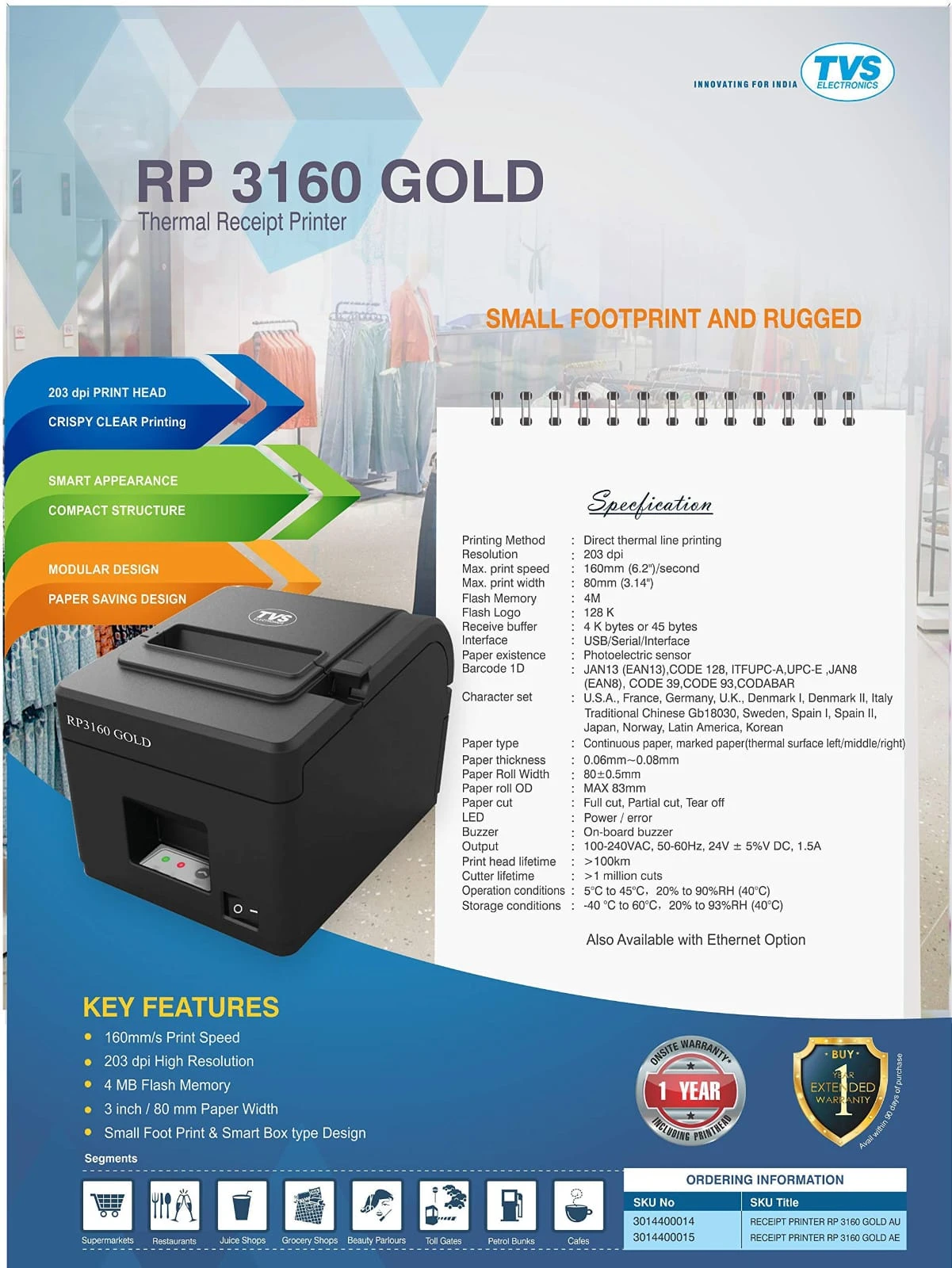

SPECIFICATIONS:

Printing Method

Direct Thermal-line printing

Resolution

203 DPI

Max. Print Speed

160 mm/sec

Max. Print Width

80 mm

Flash Memory

4 MB

Flash Logo

128 K

Receive Buffer

4 K bytes or 45 bytes

Interface

USB / Serial

Paper existence

Photoelectric Sensor

BARCODE ID

JAN13 (EAN13), CODE 128, ITF UPC-A, UPCE, JAN8 EAN8, CODE 39, CODABAR

Character Set

U.S.A, France, Germany, U.K, Denmark I, Denmark II, Italy traditional Chinese Gbl8030, Sweden, Spain I, Spain II, Japan, Norway, Latin America, Korean

Paper type

Continuous paper, marked paper, thermal surface | left / middle / right

Paper Roll width:

80 ± 0.5 mm

Paper Thickness

0.06 mm – 0.08 mm

Paper Roll OD

MAX 83 mm

Paper Cut

Full cut, Partial cut, Tear off

LED

Power / Error

Buzzer

Onboard Buzzer

Output

100~ 240VAC, 5060Hz, 24V ± 5%V DC, 1.5A

Print head lifetime

100 km

Cutter Lifetime

1000000 cuts

Operation conditions

5°C to 45°C, 20% to 90% RH 40°C

Storage conditions

40°C to 60°C, 20% to 93% RH 40°C

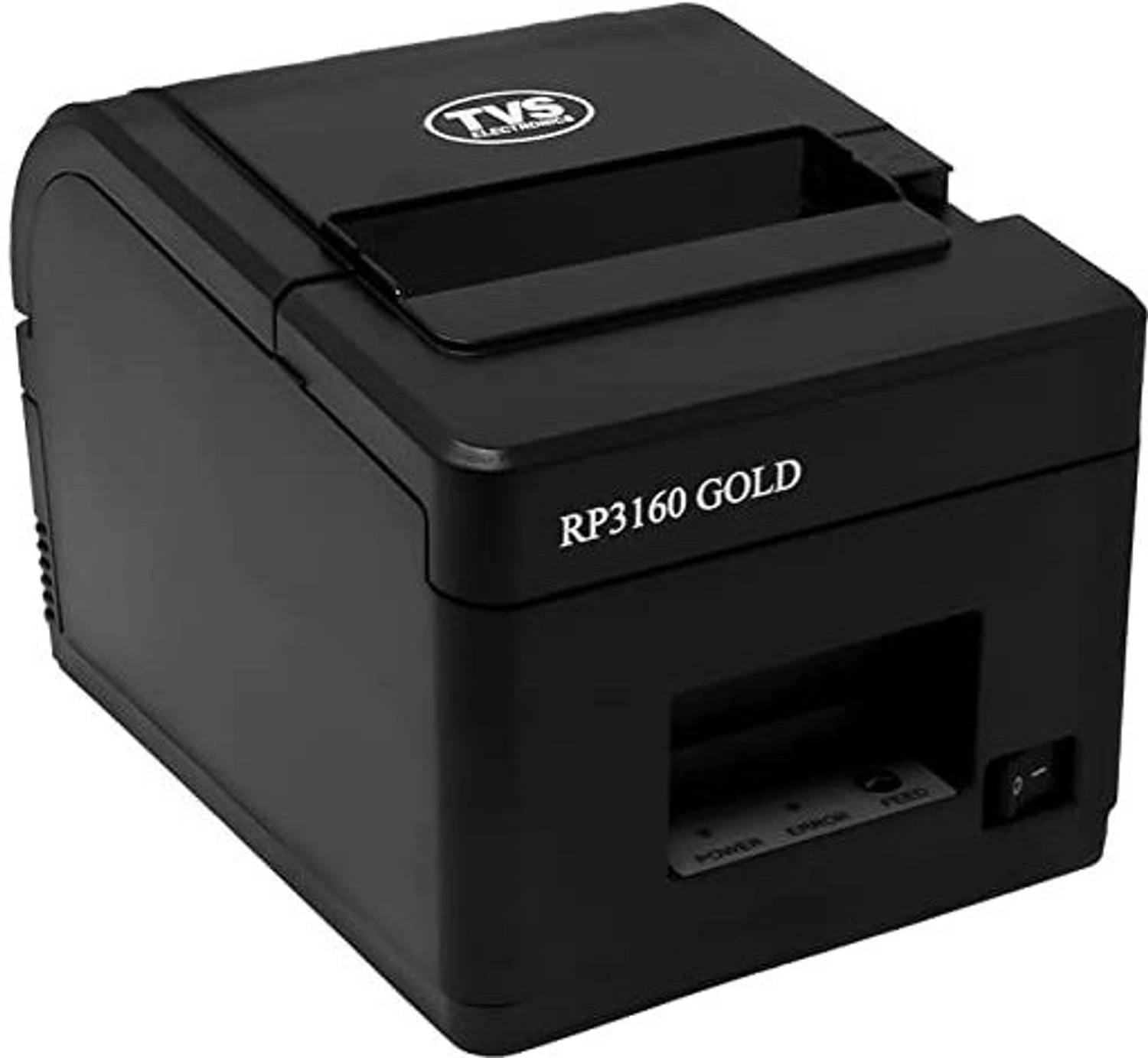

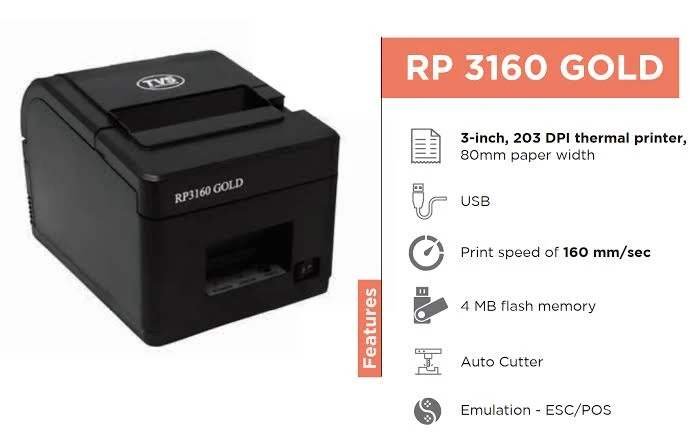

3 inch, 203 DPI thermal printer, 80mm paper width

Print speed of 160 mm/sec

Compact Design

4 MB Flash Memory

USB
