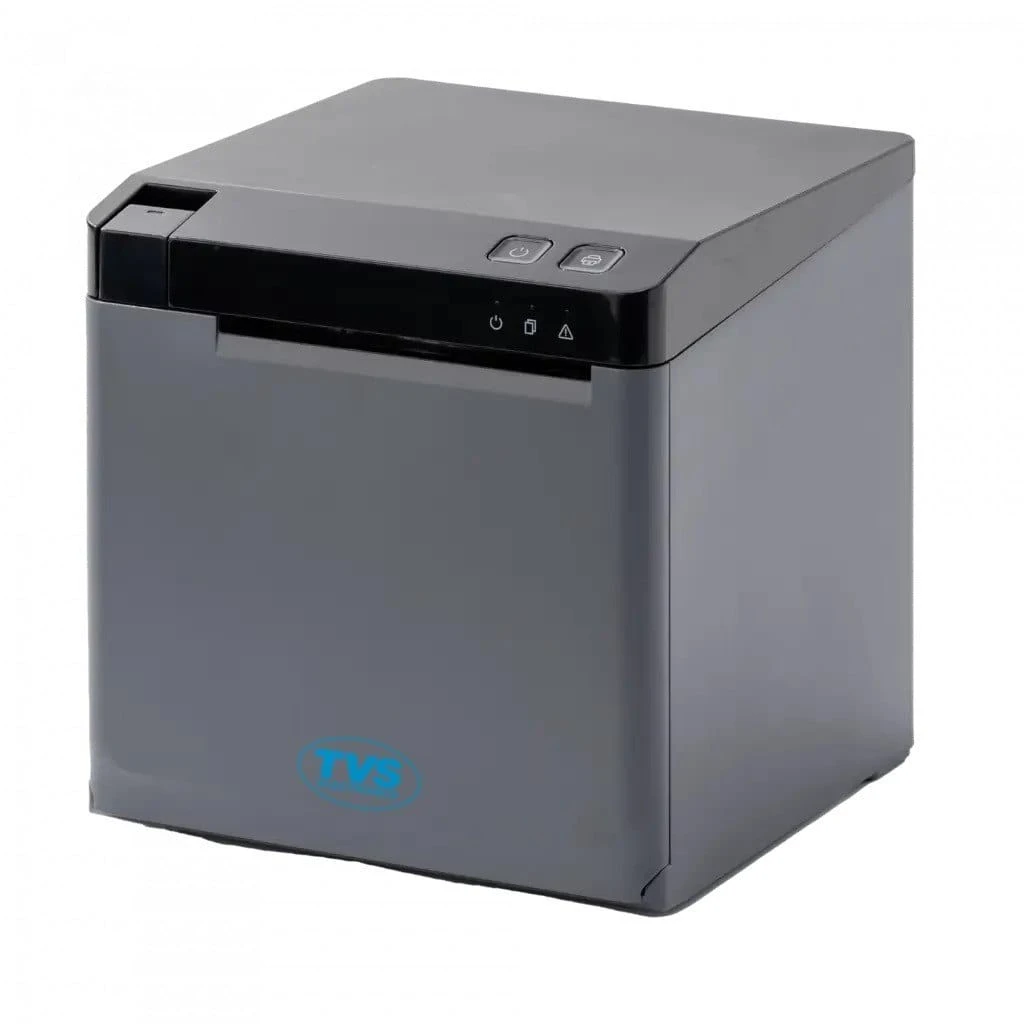

Print Model

RP 3230 ABW

Printing Method

Direct Thermal Printing

Resolution

203 DPI (8 dots/mm)

Print Width

72 mm / 48 mm

Print Speed

Max. 230 mm/s

Emulation

ESC/POS

Page Mode

Support

Page Type

Thermal Continuous Paper

Paper Width

79.5 ± 0.5 mm / 57.5 ± 0.5 mm

Paper Container

Max. 83 mm

Paper Feed

Upward Feed Direction

Standard Interfaces

USB + Bluetooth + WiFi

1D Barcode

UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN8, EAN13, Interleaved 2 of 5, Codabar

2D Barcode

QR Code, PDF417

Chinese Character Support

Simplified/Traditional: (24 x 24 dots)

English Character Support

ASCII: Font A 12×24, Font B 9×17

Code Page

47

Graphics

Bitmap printing and downloading with different density, user-defined (Max. 64K each; total bitmap cannot exceed 512K)

Buzzer

Internal buzzer, kitchen bell (optional)

Sensors (Standard)

Paper end, cover opening, cutter jam, TPH over-temperature

Sensors (Optional)

Black Mark Sensor

RAM

4 MB

Flash Memory

4 MB

Input Power

AC 100V-240V, 50/60 Hz

Output Power

DC 24V, 2A

Driver Support

Windows 7/8/10, Windows Server 2008/2012/2016, Linux, Javapos, OPOS, MacOS

Utility Tool Support

Windows 7/8/10, Windows Server 2008/2012/2016

TPH Life

100 km

Cutter Life

1,500,000 times

Operating Conditions

0–45°C, 5–95% RH (No Condensation)

Storage Conditions

20–70°C, 15–95% RH (No Condensation)

Certification

BIS

Weight

0.916 kg

Dimensions

140 mm (L) x 179 mm (W) x 117 mm (H)
