General Information

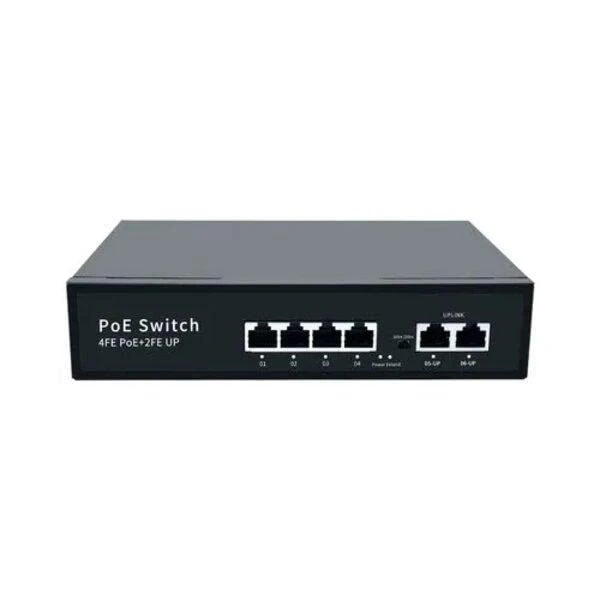

Product Type: PoE Network Switch

Ports: 4 Port PoE + 2 Uplink Ports

Application: CCTV IP Cameras, NVR Networking, Small Office LAN

Technology: Power over Ethernet (PoE)

Ports & Interface

PoE Ports: 4 × RJ45 Ports (10/100 Mbps)

Uplink Ports: 2 × RJ45 Ports (10/100 Mbps)

Total Ports: 6 Ports

Auto MDI/MDIX: Supported

PoE Features

PoE Standard: IEEE 802.3af / IEEE 802.3at

PoE Output per Port: Up to 30W

Total PoE Power Budget: 60W / 78W (Depends on Model)

Power Supply: DC 52V Adapter / Built-in PSU

Performance

Switching Capacity: 1.2 Gbps

Packet Forwarding Rate: 0.89 Mpps

MAC Address Table: 1K / 2K Entries

Transmission Mode: Store & Forward

CCTV Surveillance Features

Specially Designed for IP Camera Systems

Smooth HD Video Transmission

Plug & Play Installation

Stable Power Supply for 4 Cameras

Advanced Modes (Optional)

VLAN Mode: Reduces Network Broadcast

Extend Mode: Transmission Distance Up to 250m

AI Watchdog: Auto Restart for Offline Cameras

Protection & Safety

Surge Protection: 4KV–6KV

Lightning Protection: Supported

Short Circuit Protection: Yes

Overload Protection: Yes

Operating Conditions

Working Temperature: 0°C to 55°C

Storage Temperature: -20°C to 70°C

Humidity: 10% to 90% Non-Condensing

Package Includes

4CH PoE Switch Unit

Power Adapter / Power Cable

User Manual
