General Information

Product Type: PoE Network Switch

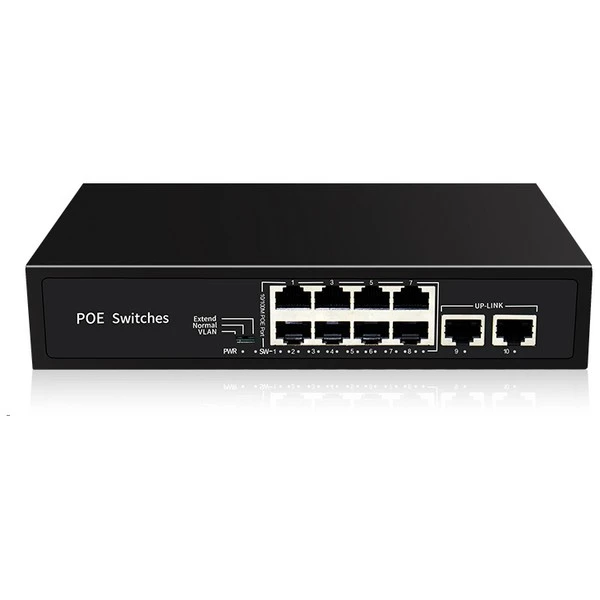

Model: 8 Port PoE + Uplink Gigabit Switch

Application: IP CCTV Cameras, NVR Networking, Office LAN

Technology: Power over Ethernet (PoE)

Ports & Interface

PoE Ports: 8 × RJ45 Ports (10/100 Mbps)

Uplink Ports: 2 × RJ45 Gigabit Ports (10/100/1000 Mbps)

Total Ports: 10 Ports

Auto MDI/MDIX: Supported

PoE Features

PoE Standard: IEEE 802.3af / IEEE 802.3at

PoE Output per Port: Up to 30W

Total Power Budget: 96W / 120W (Depends on Model)

Power Supply: DC 52V Adapter / Built-in PSU

Performance

Switching Capacity: 5.6 Gbps

Packet Forwarding Rate: 4.16 Mpps

MAC Address Table: 2K / 4K Entries

Transmission Method: Store & Forward

CCTV & Surveillance Support

Specially Designed for IP Camera Systems

Smooth HD Video Transmission

Supports NVR Plug & Play Connection

Stable Power Supply for 8 Cameras

Advanced Modes (Optional)

VLAN Mode: Reduces Broadcast Storm

Extend Mode: Transmission Distance Up to 250m

AI Watchdog: Auto Restart for Offline Cameras

Protection & Safety

Surge Protection: 6KV

Lightning Protection: Supported

Short Circuit Protection: Yes

Overload Protection: Yes

Operating Environment

Working Temperature: 0°C to 55°C

Storage Temperature: -20°C to 70°C

Humidity: 10% to 90% Non-Condensing

Package Includes

8CH PoE Switch with Uplink

Power Adapter / Power Cable

User Manual
